New Jetall GSE, JTL13000-DHC6BT

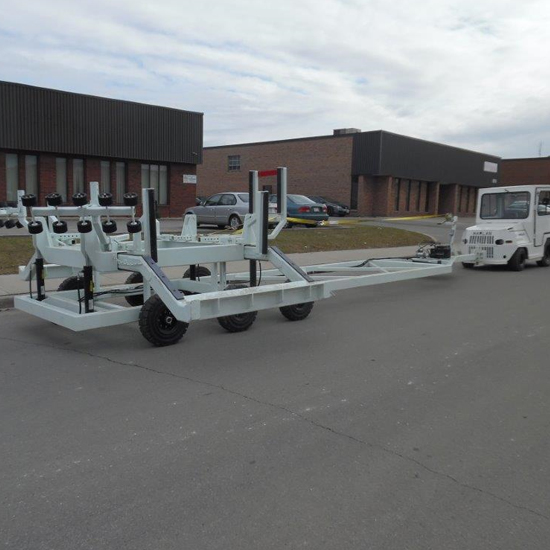

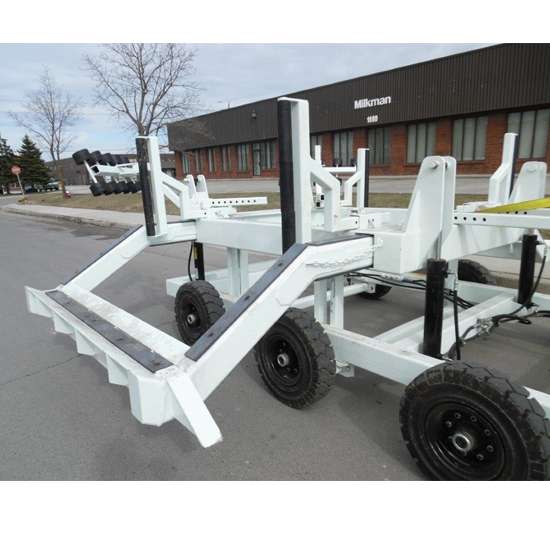

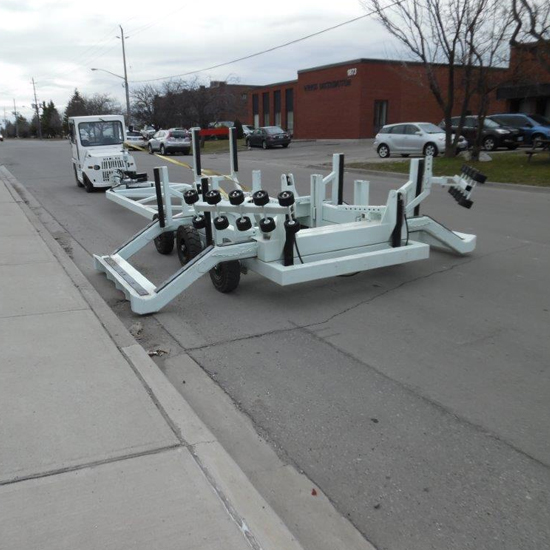

    Trailer designed to be used for moving DHC6 on floats, in & out the water. The trailer basic design is similar to a large boat towing Trailer, the keel of the DHC6 pontoons will be positioned on the outside of the center section along the length of the Fenders. The Trailer is constructed with galvanized steel/Aluminum and it consists of 3 main components;
    2 x Fenders – that support the floats and the total weight of the aircraft while securing the aircraft at the correct position on the trailer.
    1 x Center section – Includes a main structure with 3 axles supporting 6 wheels. This structure also supports the side hanging fenders when either deployed or folded up-words, on top, for shipping. The forward part of the center section is equipped with; Tow arrester to connect to the tow tug, Stabiliser that is adjustable, folding and equipped with a caster wheel, Pull straps for pulling the aircraft on the Trailer, Parking brake actuator and a Forward securing Bar, adjustable to act as the forward securing stops for the Pontoons.
    The main specifications for the trailer are:
    1. When deployed for use
    – Length: Overhaul: 38’
    – Width: Pontoons bed deployed: 16’
    2. When folded for shipping
    – Length: Overhaul: 34’
    – Width: Pontoons bed folded: 7’ 8”
    – Height: Trailer with Pontoons folded: 5’ 2’
    3. Weight carrying capacity: 14,000 lbs./strong>
