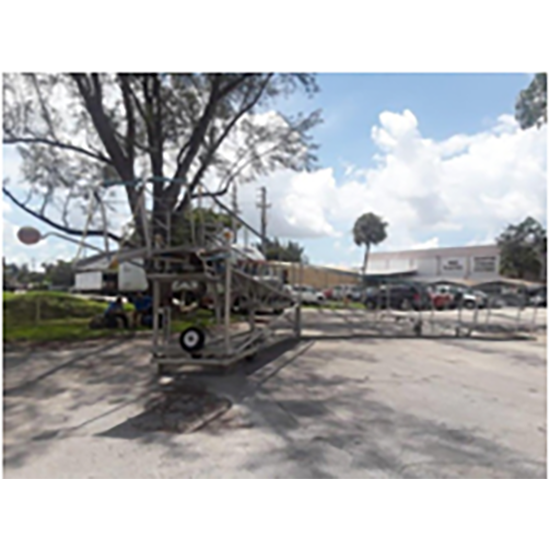

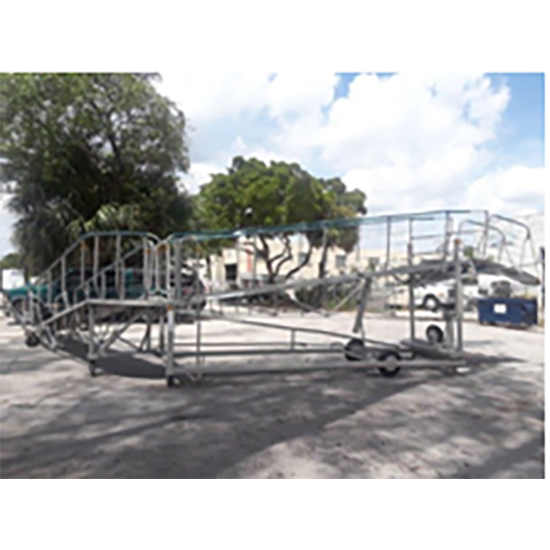

Adaptive Eng., Express Ramp

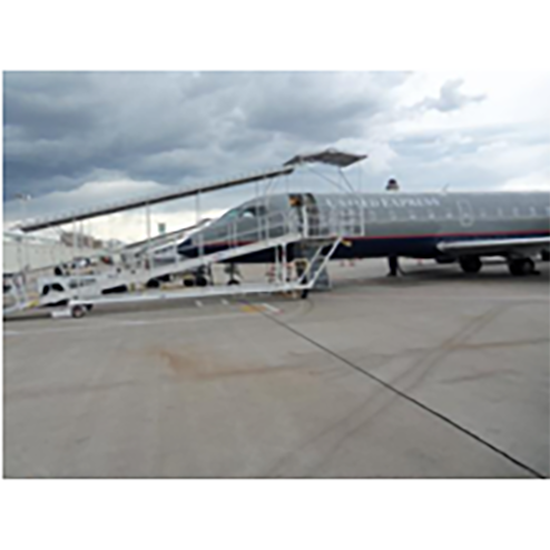

The Express Ramp is compatible with CRJ 100/200/700, ERJ 135/145, Dash 8, BAe 146, Dornier 328, Saab 340, Brasilia, Beech 1900, Boeing 717, MD-80, Fokker 28/75/100
- Aircraft Sill Height: min 42” to max 88”
- Weight: 1,900 lbs., stable to 75 mph wind
- Overall Height Unfolded (deployed): 104”
- Overall Width (folded position): 93”
- Length of walking slope: 36’
- Capacity: Full loading 35 people (7000 lbs.)
- Full-floating, counter-balanced bridge ramp allows for quick positioning at aircraft
- Small effective-footprint for efficient storage (when folded)
- Broad base and wind-optimized truss design provide wind stability
- Manual height adjustment: Main Bridge 44” to 84”
- Drop-lock disc brakes with dead-man feature prevent Express Ramp movement when unattended
- Quick change spare tire almost completely eliminates “downtime”
- Pneumatic (air filled) tires on main wheels offer low rolling resistance in a wide range of conditions
- Slip-resistant walking surface w water drains slots
