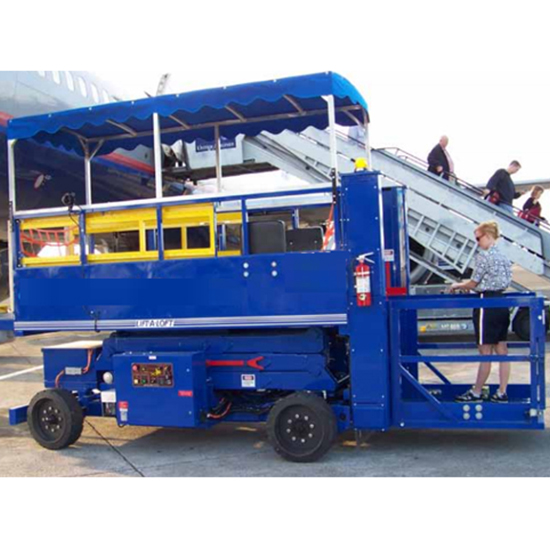

New Jetall GSE, JTLAM36/192

Cabin Service/Ambulance

• Power Source: 48 V Electrical sys. with an on board 110V, 60Hz charger
• Platform Control Station is on an adjustable positioning track that allows the operator to choose where they want to operate the unit
• Steering: Thumb rocker type for left & right steer on top of the joystick
• Main platform: Wide 56”; Long 130”
• Travel height w optional platform canopy 96”

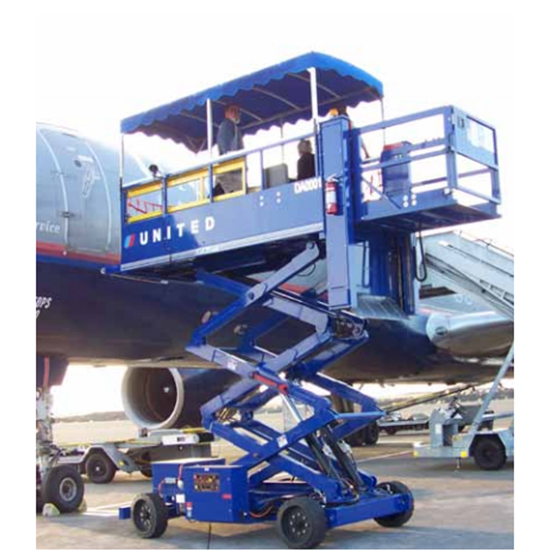

• Platform Height range: 3’ 11” to 17’ 9”
• Access platform: Full width rear access platform offers ground level access (600 lbs.)

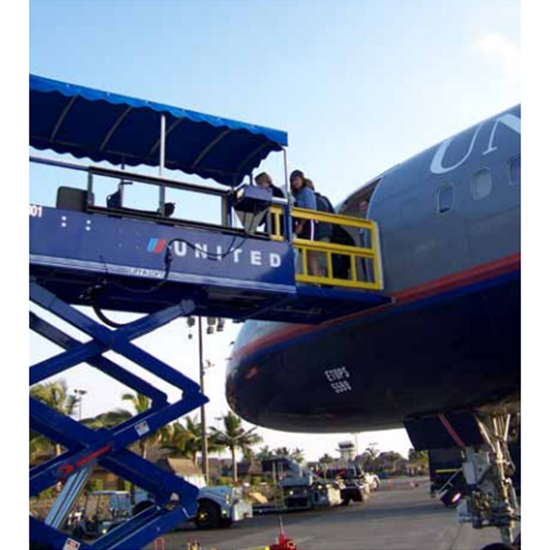

• Deck Extension: Powered deck with aircraft bumpers extends out 35″ to access aircraft
• Load Capacity: 1,000 lbs.
• Travel speed: Proportional up to 3.5 mph
• Tires: 22″ heavy traction solid pneumatic type
• Platform with hand rails
• Colour: Federal standard Insignia white & black strip
• Weight: 9,800 lbs.
• Drive: An automatically activated creep speed function allows smooth & safe driving of the platform at full elevation.
• Blinking amber light

Options:

• Fold down chair for attendant cold weather package-hydraulic system & battery heaters
• Platform canopy-Main platform only
• Head/tail lights each
