Lavatory Service Unit

Stiner: 2000 Stinar, Model SLS-500-PL
Engine: International DT466, Diesel

  • Chassis: International DT466 Diesel
  • Transmission: Automatic
  • 150 Gallon blue water fill tank
  • 500 Gallon waste tank
  • Lift: 120”, hydraulic pedestal, 500 lbs. capacity

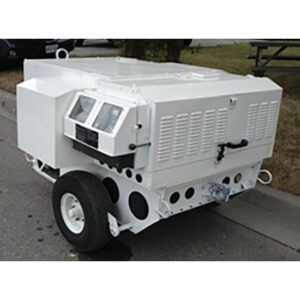

Aircraft Heater

Polartherm , Model NGH-1
Engine: Diesel

  • Fuel Types: Diesel, Kerosene, Jet A, JP-5, JP-8.
  • Heat Capacity: 115KW- 400,000BTU
  • Air volume: 2900 m3/hr (1700 CFM)
  • Fan pressure: 1000 Pa
  • Operating time: 10 Hrs.
  • Dimension: L67”x W55”x H48”
  • Weight: 1040 lbs.

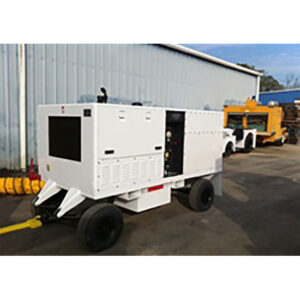

Aircraft Heater

Coldbuster , Model Mk-1
Engine: Ford 4.9 lt.

  • Heat Capacity 500,000 BTU
  • Maximum Flow: 6,000 CFM @ 2,800 RPM
  • Temperature rise over ambient: 125°F
  • Fuel Capacity: 60 Gallons (US) / 227 Liters
  • Trailer mounted, tow bar, parking brake, Delivery Hose 12” plus Aircraft Coupling
  • Dimensions: L=108”, W=48”, H=69”
  • Weight: 2,900 lbs.

Ground Power Unit (GPU)

Hobart , Model JetEx-4D 28.5 Volt DC Power
Engine: Perkins 4.236 Diesel,

  • AC Hobart Alternator
  • Output, 28.5 VDC, 550 amp continuous
  • Peak Start Current capacity 2000 amps
  • Adjustable soft start current limiter 0 to 2000 amps.
  • Output cable and aircraft plug included
  • Trailer mounted with tow bar, pneumatic tires
  • Manually activated parking brake
  • Dimensions: (on trailer) L 75.5” x W 58” x H 63.5”

Ground Power Unit (GPU)

Hobart , Model 140C17P 140KVa AC Power
Engine: Cummins, Diesel, 6 cyl. Low 1712 RPM

  • Generator: Hobart,110 kW, brushless (28 windings) 115/200 Volt AC, 400 Hz, 404 amp continuous
  • Dual AC output with 30’ cables & aircraft plugs
  • Features Generator Overload protection
  • Trailer mounted, tow-bar
  • Manually activated parking brake
  • Dimensions: L 152”, W 85”, H 86”

Ground Power Unit (GPU)

Hobart , Model 90G20P
Engine: Detroit Diesel

  • 72 KW AC, generator, 3 phase, brushless
  • 115/200 Volt, 400 Hz, 229 amps. Continuous
  • Cable and Aircraft plug
  • Trailer mounted, tow bar
  • Manually activated parking brake
  • Load bank tested and certified
  • Dimensions: L=97”, W=67”, H=70”

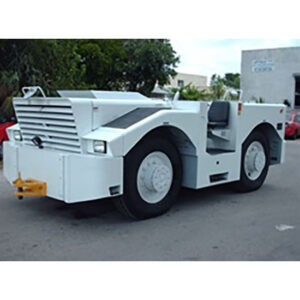

Aircraft Pushback TUG

International Harvester, Model T-300 Paymover
Engine: Detroit Diesel, series 6V-53 (210 hp.)

  • GVW: 56,000 lbs.
  • DBP: 30,000 – 40,000 lbs. (tow up to 500,000 lbs.)
  • Transmission: GM, Allison, automatic
  • Brakes power assist hydraulic operated
  • 4-wheel drive, 4-wheel steering, 3 modes
  • Hitches at front and rear
  • Dimensions: L=204”, W=96”, H=69”

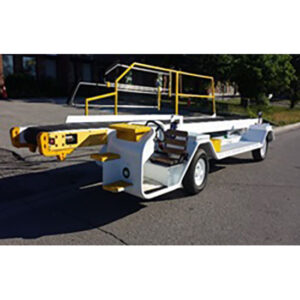

Belt Loader

Wollart, Model TC-888D
Engine: Deutz, 4 cylinder, diesel

  • Transmission: Ford, C-6 automatic
  • Brakes: Power assist Front and Rear
  • Steering: Power assist steering
  • Capacity: 2,000 lbs.
  • Belt: 24” on 34” bed
  • Engine driven hydraulic pump
  • Operating Height Range: 30” to 169”
  • Dimensions: L=297.5”, W=82”, H=48” (down)
  • Lighting: Drive and Tail
  • Bumpers: Front and Rear
